Section VII · Pages 102–123 (22 pages)

Engine

From the 1941–1948 Chrysler Shop Manual

Covers the L-head six-cylinder and eight-cylinder engines, with sectional views of both. It begins with the minor tune-up, performance inspection and major tune-up. Overhaul pages cover fitting aluminum and light cast iron pistons with a spring scale, semi-finished pistons and the rotor oil pump with its clearance checks. The floating oil strainer is also covered, along with oil pressure relief valves (color-coded springs on sixes, adjustable on eights), by-pass and full-flow oil filters, and crankcase ventilation.

Read this section free, starting at page 102

What this section covers

  • Minor and major engine tune-up
  • Piston fitting and oversizes
  • Oil pump inspection and assembly
  • Oil pressure relief valve
  • By-pass and full-flow oil filters
  • Crankcase ventilation
Year
1941, 1942, 1946, 1947, 1948
Make
Chrysler
Vehicle
Imperial, Passenger Cars
Type
Service Manual
Models
C-28/30/33, C-34/36/37, C-38/39/40: Royal, Windsor, Saratoga, New Yorker, Crown Imperial, Town and Country
Publication
D-11298
Pages
304

What’s inside

Servicing methods

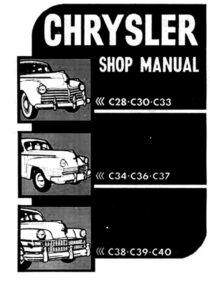

  1. CoverFront cover listing the three model groups covered: C28-C30-C33, C34-C36-C37 and C38-C39-C40.pp. 1–1
  2. IFront Axlepp. 2–18
  3. IIRear Axlepp. 19–28
  4. IIIBrakespp. 29–43
  5. IVClutch and Fluid Drivepp. 44–58
  6. VCooling Systempp. 59–70
  7. VIElectrical Systempp. 71–101
  8. VIIEnginepp. 102–123
  9. VIIIFuel Systempp. 124–143
  10. IXFrame, Springs and Shock Absorberspp. 144–157
  11. XSteeringpp. 158–163
  12. XITransmission (Standard Type)pp. 164–173
  13. XIVacamatic Transmission and Overdrivepp. 174–210
  14. XIHydraulically Operated Transmissionpp. 211–231
  15. XIIUniversal Joints and Propeller ShaftCovers the cross and yoke universal joints: removal, overhaul, and assembly with balance arrows mated. Also covers the propeller shaft center bearing used on 7-passenger models and on the C-33, C-37 and C-40.pp. 232–235
  16. XIIIWheels and Tirespp. 236–243
  17. XIVBodypp. 244–278
  18. XIVTown and Country Carspp. 279–285
  19. XVLubricationpp. 286–293

Service standards and index

  1. XVIService Standardspp. 294–303
  2. Foreword and Section IndexForeword describing the manual's two parts, model code groups and Miller service tools, with the section index and part number D-11298.pp. 304–304
