Pages 67–86 (20 pages)
Electrical System

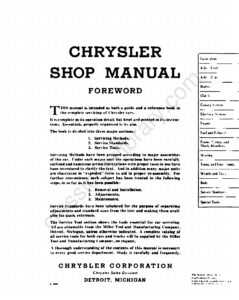

From the 1937 Chrysler Shop Manual
Wiring diagrams with harness keys, fuse and light bulb tables for each code open the chapter. Service covers the generator, commutator and brushes, the current and voltage regulator with its circuit breaker and test method, and the starting motor, mechanically shifted on the C14 and C16 and solenoid-operated on the C15 and C17. It continues with the distributor and breaker points, ignition coil, battery testing with a hydrometer, lighting controls, headlamp lenses and headlamp aiming, light bulbs and radio installation and noise suppression.
Read this section free, starting at page 67What this section covers
- Wiring diagrams and harnesses by code
- Generator brushes and commutator
- Current and voltage regulator testing
- Starting motor and solenoid (C15, C17)
- Distributor and breaker points
- Battery and hydrometer readings
- Headlamp aiming
- Radio interference and diagnosis
- Year
- 1937
- Make
- Chrysler
- Vehicle
- Airflow, Passenger Cars
- Type
- Service Manual
- Models
- Codes C14, C15, C16 and C17 (C17 Airflow)
- Pages
- 228
What’s inside
Servicing methods
- Break-In, Seasonal Service, Inspection and Tune-Uppp. 1–8
- Lubricationpp. 9–18
- Model Codes and Starting Serial NumbersDivider pages listing the starting serial numbers for codes C14, C15, C16 and C17.pp. 19–20
- Front Axlepp. 21–31
- Rear Axlepp. 32–40
- Brakespp. 41–51
- Clutchpp. 52–58
- Cooling Systempp. 59–66
- Electrical Systempp. 67–86
- Enginepp. 87–103
- Fuel and Exhaust Systempp. 104–111
- Frame, Springs and Shock Absorberspp. 112–117
- Steeringpp. 118–127
- Transmission and Universal Jointspp. 128–142
- Wheels and TiresFront and rear wheel and hub removal, front wheel bearing adjustment, wheel balancing, tire mounting and inflating double inner tubes.pp. 143–145
- Bodypp. 146–163
Service standards
- Service Standards: Codes C14 and C15pp. 164–169
- Service Standards: Code C16pp. 170–174
- Service Standards: Code C17 (Airflow)pp. 175–179
