Pages 162–165 (4 pages)
Voltage Regulator
From the 1963 White Model 3026 Truck Maintenance Manual
Two-element and three-element regulators for positive and negative ground systems, with voltage regulator, current limiter and load relay, internal wiring diagrams, test block wiring and resistance measurements.
Read this section free, starting at page 162What this section covers
- Two and three element regulators
- Internal wiring diagrams
- Test block wiring
- Voltage and ignition switch resistance tests
- Year
- 1963
- Make
- White
- Vehicle
- Heavy Duty Trucks, Trucks
- Type
- Service Manual
- Models
- White Model 3026 trucks with Super Mustang 6-cylinder engine
- Pages
- 177
What’s inside
Maintenance manual

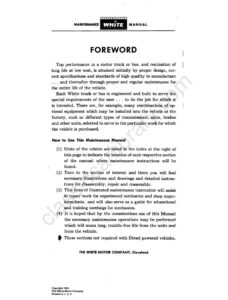

- Foreword and Factory BranchesThe foreword, instructions on how to use the manual, the section index, and the list of White factory branches in the United States and White Motor Company of Canada locations. Ends with engine and front axle data pages.pp. 1–4
- Enginepp. 5–22
- Clutchpp. 23–32
- Oil FilterFull-flow, controlled pressure oil filter mounted on a combined filter and oil cooler base, with by-pass filter connections and element replacement.pp. 33–34
- Air CleanerDry, pleated paper air cleaner mounted on the carburetor, with element cleaning intervals and removal for service.pp. 35–35
- Ignitionpp. 36–41
- Alternator and Starting Motorpp. 42–55
- Transmissionpp. 56–69
- Parking Brakepp. 70–73
- Service Brakepp. 74–89
- Rear Axlepp. 90–103
- Front Axlepp. 104–107
- Propeller ShaftTubular propeller shaft with two universal joints and a splined slip joint, with disassembly and reassembly of the universal joint.pp. 108–110
- Steering Gear and Power Steeringpp. 111–135
- Lubrication and Coolingpp. 136–153
- Cabpp. 154–161
- Voltage Regulatorpp. 162–165
- Storage BatteryLead-acid storage battery description, filling level, cold weather operation and charging.pp. 166–167
- Wiring Diagrampp. 168–171
- Shock Absorberspp. 172–177
