1953 Statesman Six WCD Carburetor 2034S

What’s inside

Carburetor sheets

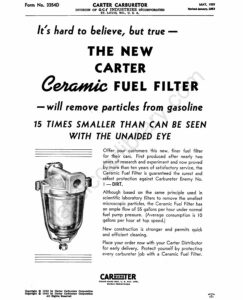

1. Carter Ceramic Fuel Filter NoticeCarter dealer notice for the Ceramic fuel filter (Form 3354D, May 1939, revised January 1953), which removes particles from gasoline and flows 55 gallons per hour at normal fuel pump pressure.pp. 1–1
2. 1959 Rambler Six WCD Carburetor 2887SWCD dual down-draft Climatic Control carburetor 2887S for the 1959 Rambler Six model 5910 with the 196 cu. in. engine (Form 5343A). Gives venturi and jet sizes, tune-up data, lateral and vertical float, pump, metering rod, fast idle and unloader adjustments, and a parts list with gasket assortment 285 and re-carburetion kit 1836N.pp. 2–3
3. 1958–1959 Rambler American Six YF Carburetors 2014S and 2757SYF down-draft carburetors 2014S and 2757S for the Rambler American Six models 5801 and 5901 with the 195 cu. in. L-head engine (Form 5311C). Covers specifications, tune-up data, float, metering rod, accelerating pump, fast idle and unloader adjustments, and the parts list, including a lean metering rod for use above 5000 ft.pp. 4–5
4. 1957–1958 Rambler Six AS Carburetors 2664S–2749SAS down-draft carburetors 2664S, 2665S, 2748S and 2749S for the Rambler models 5710 and 5810 with the 195 cu. in. overhead valve six (Form 5272F), split by automatic and standard or overdrive transmissions. Lists specifications, tune-up data, float, pump, metering rod, fast idle and unloader settings, and the parts list with kit 1936N.pp. 6–7
5. 1957–1958 Rambler Six WCD Carburetor 2586SWCD dual down-draft carburetor 2586S for the Rambler Six models 5710 and 5810 with the 195 cu. in. engine (Form 5268D). Gives early and late production idle port and spark port sizes, tune-up data, the lateral and vertical float adjustments and metering rod procedure, and a parts list with standard and lean metering rods.pp. 8–9
6. 1957 Rambler Six AS Carburetors 2564S and 2580SAS down-draft carburetors 2564S (automatic) and 2580S (standard transmission) for the 1957 Rambler model 5710 (Form 5241E). Covers power jet and power jet rod sizes, metering rod and jet, float, pump, fast idle and unloader settings, and the parts list, with a note on the metering rod used to cure surge at 25 to 60 mph.pp. 10–11
7. Carter AS Service Adjustment Procedure (Hudson–Nash)Illustrated service adjustment procedure for the Carter model AS carburetor on Hudson and Nash cars (Form 500A): float level and float tang clearance, pump, metering rod, fast idle and unloader adjustments, plus service notes on removing the pump discharge check, assembling the air horn to the body and installing the metering rod.pp. 12–13
8. 1957 Nash-Hudson V-8 WCFB Carburetors 2593S and 2593SApp. 14–17
9. Carter WCFB Service Adjustment Procedure (Nash)pp. 18–21
10. 1956 Statesman and 1957 Rambler Six WCD Carburetor 2350SWCD dual down-draft carburetor 2350S for the 1956 Nash Statesman Six and 1957 Rambler Six (Form 5199D). Lists specifications, tune-up data, float, pump, metering rod, fast idle and unloader adjustments, and an illustrated parts list with gasket assortment 285 and kit 1836N.pp. 22–23
11. 1956 Ambassador Dual Jetfire YH Carburetor 2369SYH horizontal carburetor 2369S for the twin-carburetor 1956 Nash Ambassador Dual Jetfire six (Form 5204A). Covers specifications, tune-up data, float level and float drop, metering rod gauge procedure, accelerating pump, fast idle and unloader adjustments, and the parts list with gasket assortment 284A.pp. 24–25
12. 1956 Ambassador Six YH Carburetor 2368SYH horizontal carburetor 2368S for the 1956 Nash Ambassador Six model 5660 (Form 5189C). Gives specifications, tune-up data, float level and float drop, metering rod gauge procedure, pump, fast idle and unloader adjustments, and the parts list with kit 1830N and altitude metering rods.pp. 26–27
13. 1955–1956 Nash V-8 Ambassador WGD Carburetors 2231S and 2231SApp. 28–31
14. 1955 Statesman Six WCD Carburetor 2061Spp. 32–35
15. 1954–1955 Statesman Six YF Carburetors 2098S–2258SYF down-draft carburetors 2098S, 2137S, 2137SA, 2163S and 2258S for the Nash Statesman Six models 5440 and 5540, two carburetors per engine (Form 5061G). Gives metering rod and jet sizes by number, float settings for solid and spring-loaded needles, metering rod, pump, fast idle and unloader adjustments, and the parts list with kit numbers.pp. 36–37
16. 1952–1955 Nash-Healey and Ambassador Dual Jetfire YH Carburetors 973S and 974SYH horizontal carburetors 973S (front) and 974S (rear) for the Nash-Healey model 25260 of 1952–1953 and the Ambassador Dual Jetfire models 5260 to 5560 of 1952–1955 (Form 4965J). Covers specifications, tune-up data, float, float drop, metering rod, pump, fast idle and unloader adjustments, and the parts list with kit 1754N.pp. 38–39
17. 1952–1955 Ambassador Six YH Carburetors 895S and 895SAYH horizontal carburetors 895S and 895SA for the Nash Ambassador Six models 5260, 5360, 5460 and 5560, casting 873 (Form 4946J). Gives specifications, tune-up data, float, float drop and metering rod gauge procedure, pump, fast idle and unloader adjustments, and the parts list with kit 1719N and altitude parts.pp. 40–41
