Section 8 · Pages 137–153 (17 pages)

Electrical

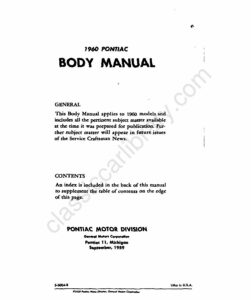

From the 1960 Pontiac Body Service Manual

Body wiring and power window wiring, with circuit diagrams for typical body circuits and a condition, cause and correction chart for short and open circuits. The power window harness is very similar to 1959. It includes the tail gate window switch and the door jamb switch.

Read this section free, starting at page 137

What this section covers

  • Typical body wiring circuit diagrams
  • Power window harness and wire colors
  • Short and open circuit diagnosis chart
  • Tail gate window switch and motor
  • Door jamb switch and circuit breaker
  • Gas gauge and license light wiring
Year
1960
Make
Pontiac
Vehicle
Passenger Cars
Type
Body Service Manual
Models
Catalina 21, Ventura 23, Star Chief 24, Bonneville 27 and 28 Series
Publication
S-6004-B
Pages
171

What’s inside

Body manual

  1. 1Front Endpp. 1–12
  2. 2Doorspp. 13–51
  3. 3Rear Quarterpp. 52–68
  4. 4Rear Endpp. 69–94
  5. 5Seatspp. 95–110
  6. 6HeadliningHeadlining assembly removal and installation for all styles except convertible, including the concealed listing wires, the foundation board above the back window and the cement tack or staple attachment on 39 and station wagon styles.pp. 111–113
  7. 7Folding Toppp. 114–136
  8. 8Electricalpp. 137–153
  9. 9Body Lubricationpp. 154–158
  10. 10Exterior Moldingspp. 159–168
  11. IndexAlphabetical subject index with section and page references, covering back window, doors, glass run channels, weatherstrips and other items.pp. 169–171
