Section 6 · Pages 146–196 (51 pages)

Engine Mechanical

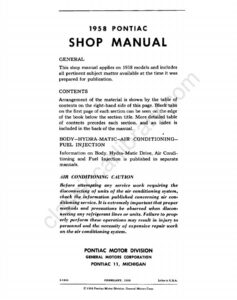

From the 1958 Pontiac Shop Manual

The Pontiac Strato-Streak V-8: description, serial numbers, general service information, periodic service and adjustments on car. Minor repairs include camshaft, oil pan, oil pump and rear main bearing oil seal replacement, with cylinder heads, pistons and connecting rods, hydraulic valve lifters, valve train, fuel distribution and exhaust systems, and combustion chambers described.

Read this section free, starting at page 146

What this section covers

  • V-8 engine description
  • Cylinder heads and combustion chambers
  • Pistons and connecting rods
  • Hydraulic valve lifters and valve train
  • Camshaft replacement
  • Oil pan, oil pump and rear main seal
Year
1958
Make
Pontiac
Vehicle
Passenger Cars
Type
Service Manual
Models
Series 25 Bonneville, 27 Chieftain and Star Chief Safari, 28 Super Chief and Star Chief
Publication
58-5804
Pages
416

What’s inside

Chassis service sections

  1. 00General Informationpp. 1–7
  2. 0Lubricationpp. 8–15
  3. 1FrameBody to frame mounting bolt positions for 25 and 27 series and 28 series cars, with the 7/16-14 bolt used for replacement, and frame dimensions.pp. 16–18
  4. 3Coil Spring Suspensionpp. 19–33
  5. 3AAir Spring Suspensionpp. 34–71
  6. 4Rear Axle and Propeller Shaftpp. 72–103
  7. 5Brakespp. 104–145
  8. 6Engine Mechanicalpp. 146–196
  9. 6AEngine Cooling and Lubricationpp. 197–207
  10. 6BEngine Fuelpp. 208–249
  11. 6CEngine Clutchpp. 250–253
  12. 7Standard Transmission and Gearshift Controlpp. 254–271
  13. 7AHeavy Duty Transmission and Gearshift Controlpp. 272–280
  14. 8Fuel Tank and Exhaust SystemFuel tank description, filler pipe seal and tank replacement, and exhaust system service: crossover pipe, exhaust pipe, muffler and tail pipe replacement, with specifications.pp. 281–283
  15. 9Steeringpp. 284–322
  16. 10Wheels and Tirespp. 323–329
  17. 11Chassis Sheet MetalFront bumper, grille, radiator support, hood hinges, hood replacement and fender removal and replacement.pp. 330–331
  18. 12Electrical and Instrumentspp. 332–386
  19. 14Accessoriespp. 387–405

Appendix and index

  1. 15Appendix: Tune-N-Testpp. 406–409
  2. 16Indexpp. 410–416
