Section 9 · Pages 190–221 (32 pages)

Engine Mechanical

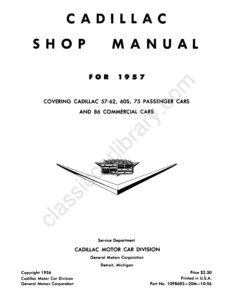

From the 1957 Cadillac Shop Manual

The 1957 Cadillac 90-degree overhead-valve V-8: 4-inch bore, 3-5/8-inch stroke, 365 cubic inches, 10.0 to 1 compression and 300 horsepower at 4800 rpm. It describes hydraulic lifters, the lubrication and crankcase ventilation systems, cylinder numbering and firing order, then gives cylinder head removal, valve and guide service and other repairs, special tools and full specifications for pistons, rings, valves, crankshaft, oil pump, vacuum pump and camshaft.

Read this section free, starting at page 190

What this section covers

  • Engine description and lubrication system
  • Crankcase ventilation
  • Cylinder numbering and firing order
  • Cylinder head removal and valve service
  • Special tools
  • Engine specifications and torques
Year
1957
Make
Cadillac
Vehicle
Passenger Cars
Type
Service Manual
Models
Series 62, 60 Special (60S), 75 passenger cars; Series 86 commercial chassis
Publication
1098682
Pages
463

What’s inside

Shop manual

  1. Title Page and ContentsTitle page with publication details, the Cadillac Craftsman Code pledge for servicemen, and the section contents list.pp. 1–4
  2. 1General InformationForeword and identification data: how the ten-digit engine serial number is read (model year, series and the "broadcast number"), engine unit number prefixes by series, air conditioning and dual carburetors, standard equipment for all series, unit number locations for the engine, rear axle, Hydra-Matic, compressor, body, radio and Autronic Eye, and the accessory designation and body style charts.pp. 5–7
  3. 2Lubrication and Preventive Maintenancepp. 8–15
  4. 3Framepp. 16–19
  5. 4Chassis Suspensionpp. 20–43
  6. 5Power Steeringpp. 44–69
  7. 6Hydra-Matic Drivepp. 70–153
  8. 7Rear Axlepp. 154–163
  9. 8Brakespp. 164–189
  10. 9Engine Mechanicalpp. 190–221
  11. 10Engine Fuel and Exhaustpp. 222–265
  12. 11Engine Coolingpp. 266–273
  13. 12Electrical Systempp. 274–323
  14. 13Air Conditionerpp. 324–345
  15. 14Heating Systempp. 346–353
  16. 15Radio and Antennapp. 354–361
  17. 16Chassis Sheet Metalpp. 362–369
  18. 17Bodypp. 370–445
  19. IndexAlphabetical index of subjects with section and page references for the whole manual.pp. 446–463
