Section 13-G · Pages 88–99 (12 pages)

Electrical (All Series)

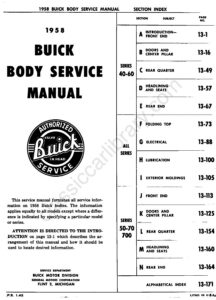

From the 1958 Buick Body Service Manual

Body electrical circuit trouble shooting procedures, covering shorts, open circuits and faulty connections, followed by body wiring diagrams. The diagrams include the power window and electric horizontal seat circuit with wire numbers and color codes.

Read this section free, starting at page 88

What this section covers

  • Electric circuit trouble shooting
  • Short circuits and open circuits
  • Body wiring diagrams
  • Power window circuit
  • Electric seat circuit
  • Wire color codes
Year
1958
Make
Buick
Vehicle
Passenger Cars
Type
Body Service Manual
Models
Series 40, 60, 50, 70 and 700 bodies, including convertibles
Pages
173

What’s inside

Series 40-60

  1. 13-AIntroduction, Care of Body and Series 40-60 Front Endpp. 1–16
  2. 13-BDoors and Center Pillar (Series 40-60)pp. 17–48
  3. 13-CRear Quarter (Series 40-60)pp. 49–56
  4. 13-DHeadlining and Seatspp. 57–66
  5. 13-ERear End (Series 40-60)pp. 67–72

All series

  1. 13-FFolding Top (All Series)pp. 73–87
  2. 13-GElectrical (All Series)pp. 88–99
  3. 13-HLubrication (All Series)pp. 100–104
  4. 13-IExterior Moldings (All Series)pp. 105–112

Series 50-70-700

  1. 13-JFront End (Series 50-70-700)pp. 113–124
  2. 13-KDoors and Center Pillar (Series 50-70-700)pp. 125–153
  3. 13-LRear Quarter (Series 50-70-700)pp. 154–159
  4. 13-MHeadlining and Seats (Series 50-70-700)Headlining is serviced like Series 40-60; seat service covers the seat back, side panel extension and the seat switch, escutcheon and handle.pp. 160–163
  5. 13-NRear End (Series 50-70-700)pp. 164–170
  6. Alphabetical IndexAlphabetical index of subjects in the manual, with 13- page references.pp. 171–173
